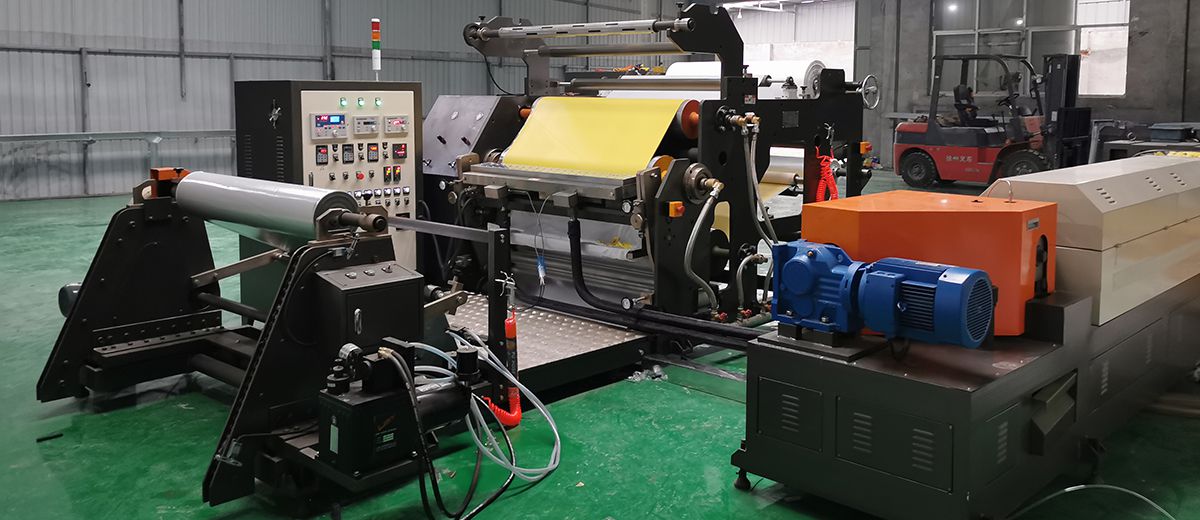

Butyl Tape Production Line
Complete coating line for butyl tape production

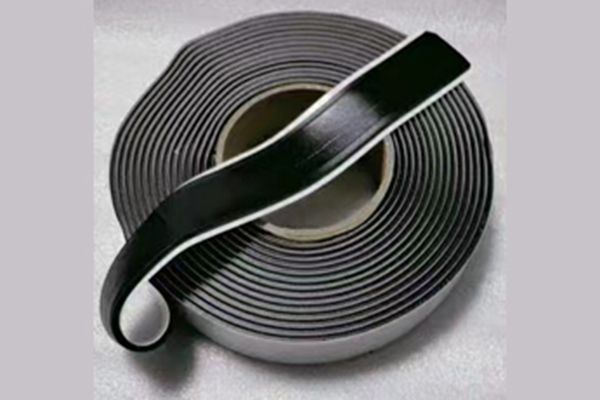

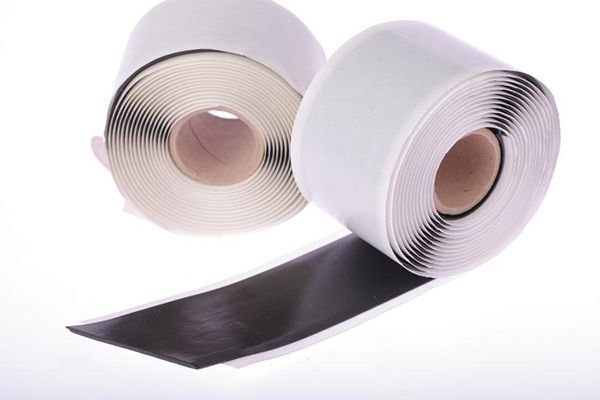

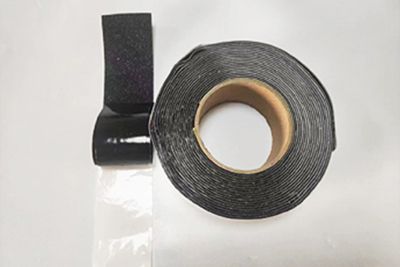

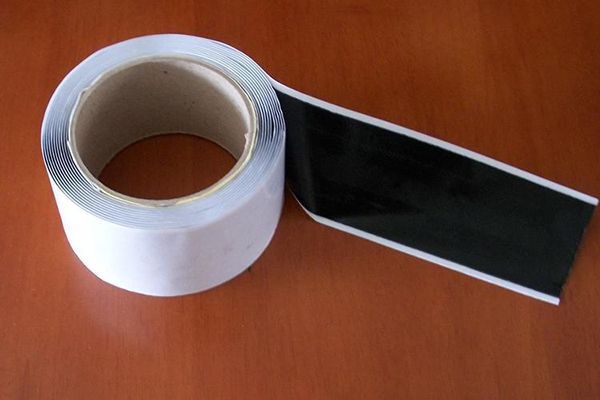

The butyl tape production line primarily produces butyl tape, waterproof patches, leak stop tape, anti-corrosion tape, and butyl overlap tape. It can also produce PVC and SBS self-adhesive waterproofing membrane. High-precision dynamic balancing equipment ensures smooth operation with low noise and no wrinkle of the product. Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
Specifications
| Model | JYJ |
| Coating Width | 400-3000mm |
| Coating Weight | 100-6000g/m² |
| Coating Speed | 1-50m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 700mm |
| Web Guide System | 1 set |
| Length | 7500mm |
| Height | 1600mm |
Parameters can be adjusted according to specific customer requirements.
Features
- Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
- Intelligent PID temperature control system, ensuring an error within 1℃.
- All active rollers and passive guide wheels have been corrected by high-precision dynamic balancing equipment. With well-arranged assembling process, the machine runs smoothly with low noise, preventing composite materials from wrinkling and thus ensuring excellent production quality.
- High-precision alloy applicator head and gear metering pump ensure high coating quality.
Main Components

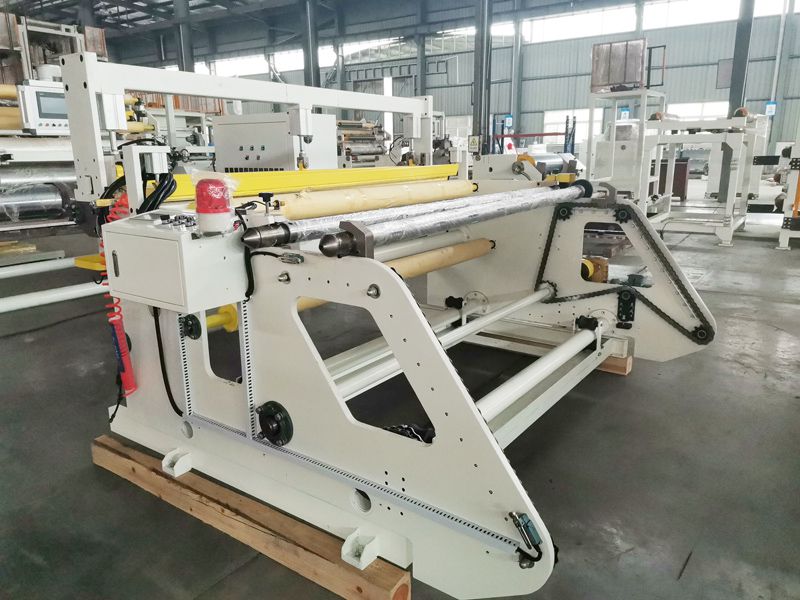

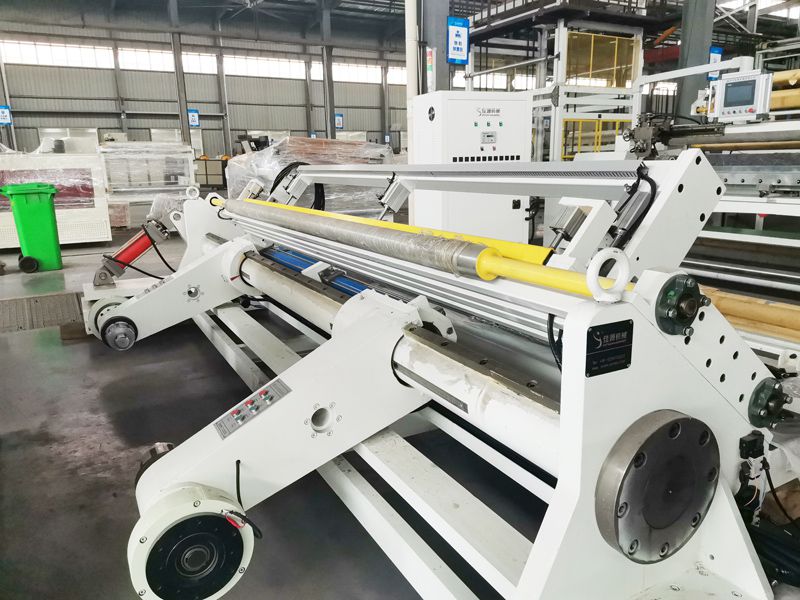

Automatic winding mechanism

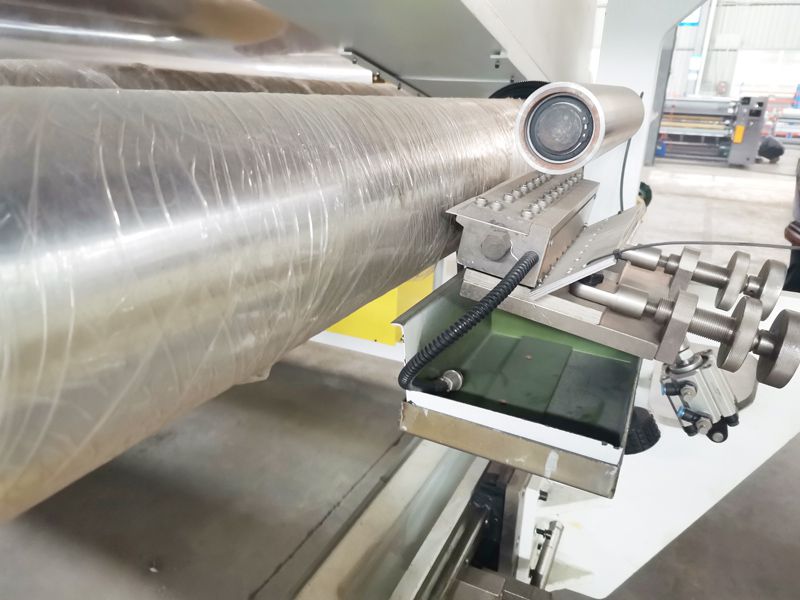

Glue mold
The isolation film composite mechanism of the coating machine
Device Backcoating device

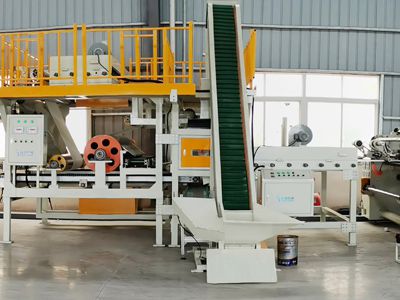

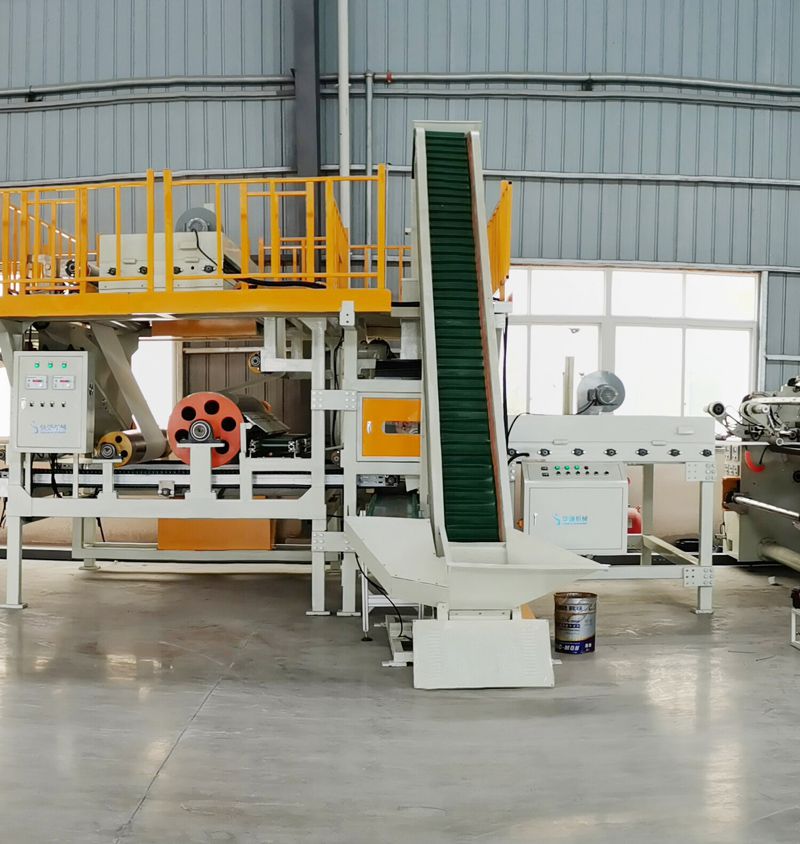

Automatic feeding system of gluing machine

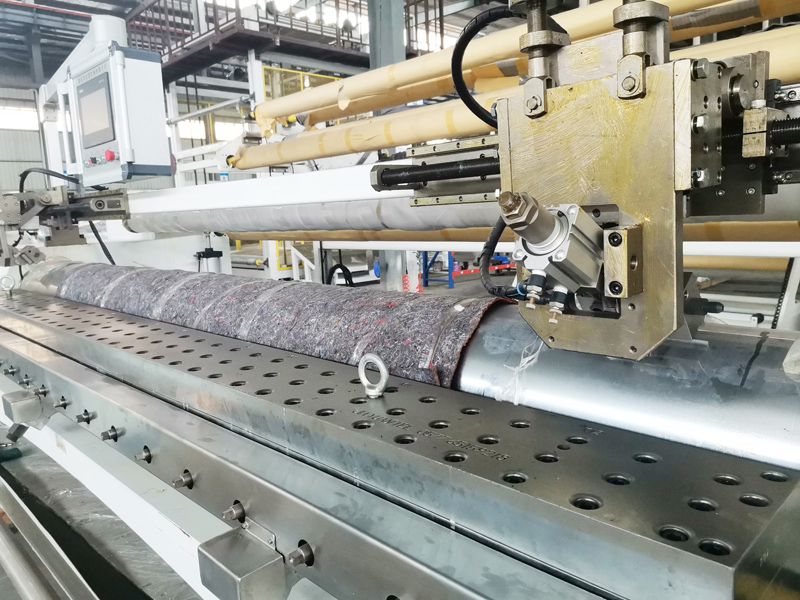

Waterproof material production equipment automatic sand mechanism

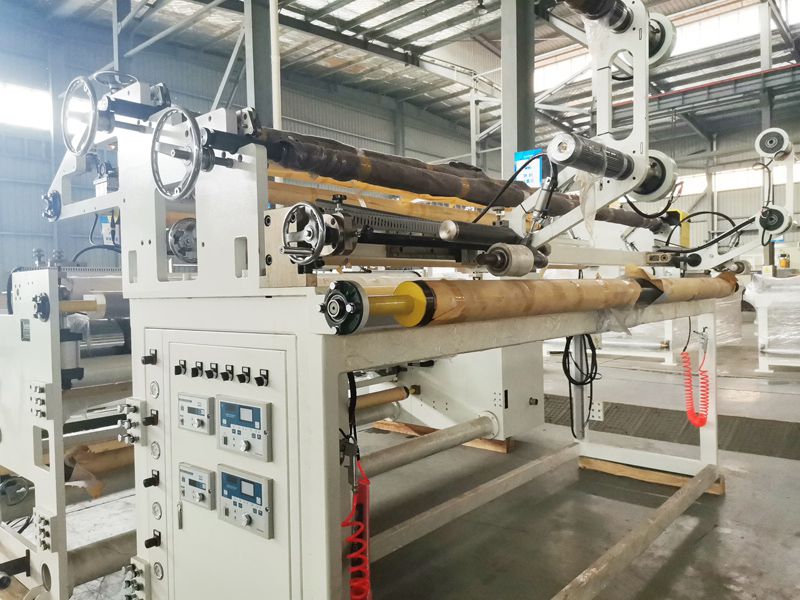

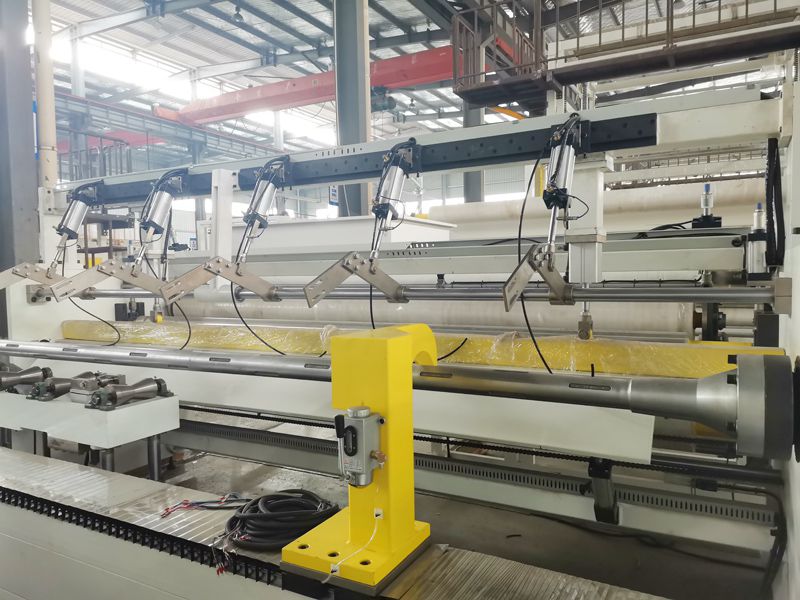

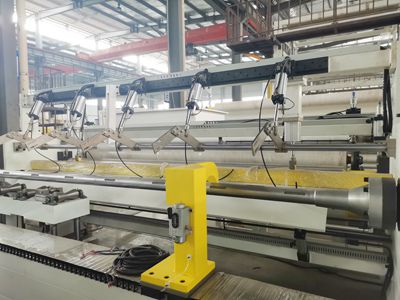

Automatic deviation correction hydraulic unwinding machine
