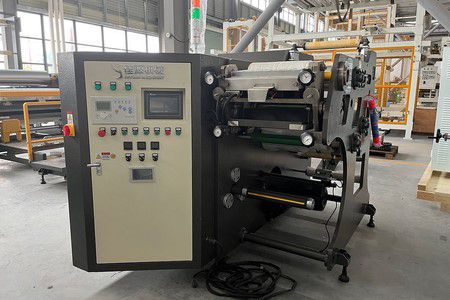

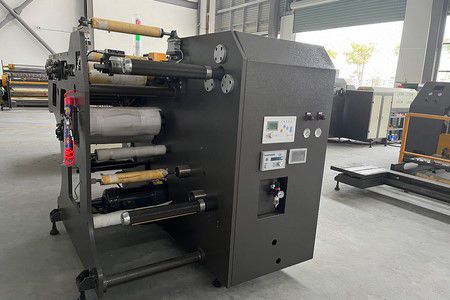

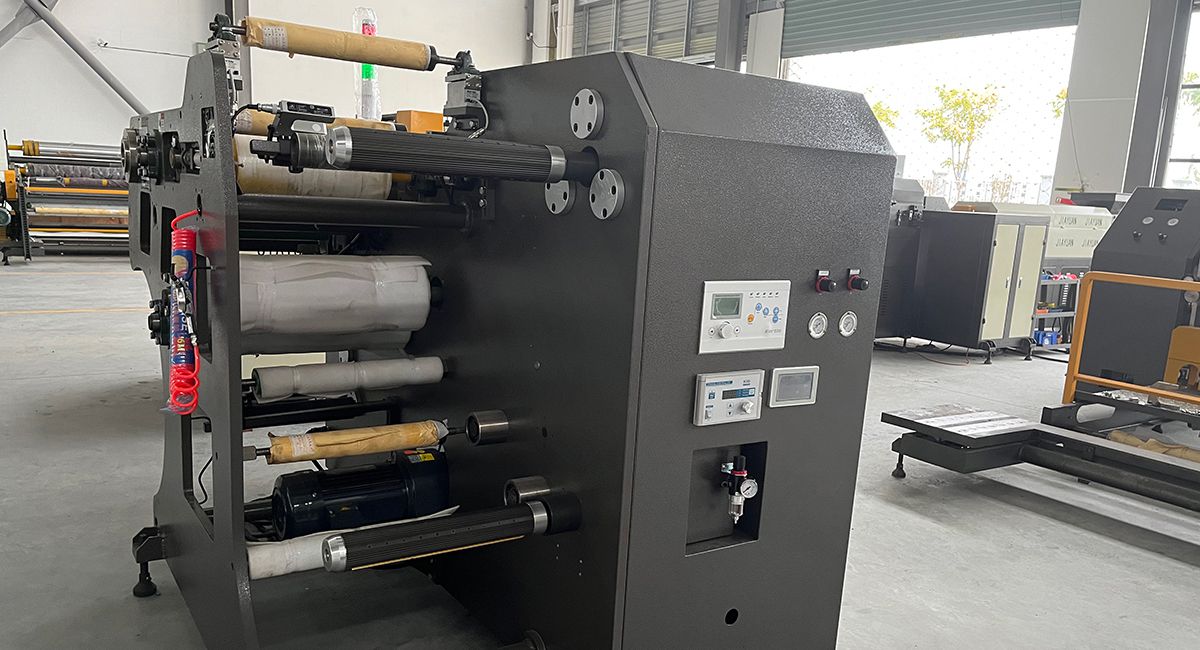

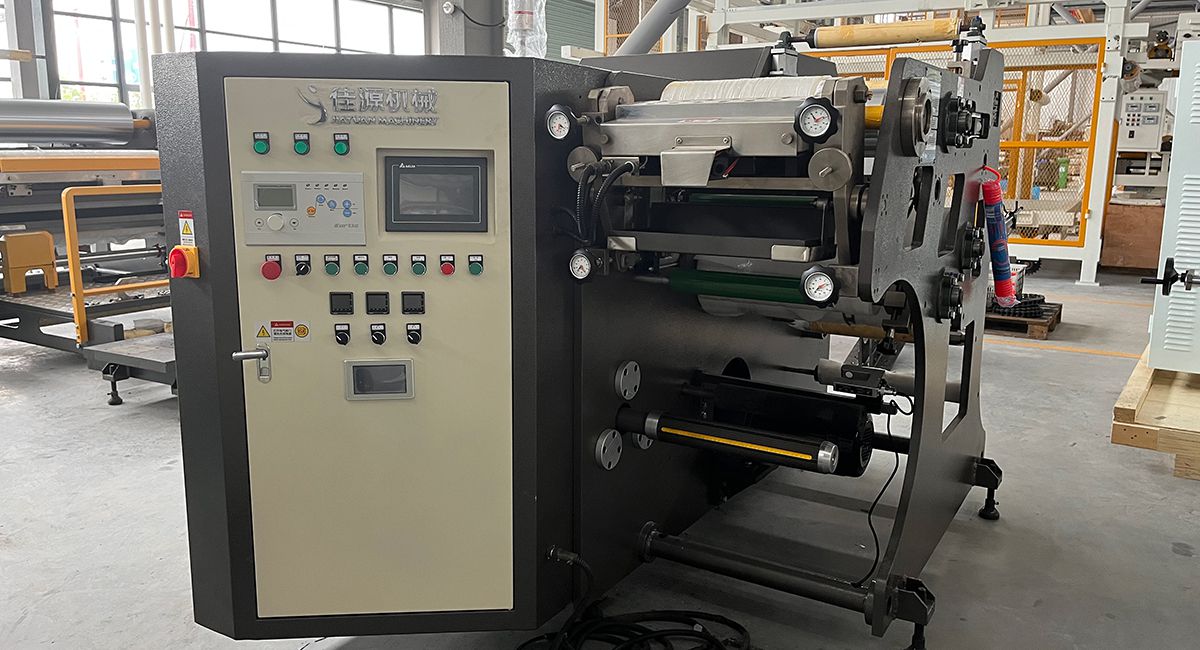

Narrow Web Hot Melt Adhesive Coating Machine, JYT200
JYT200 narrow web hot melt adhesive coater, with its low cost and flexibility, is an ideal choice for research, small batch production, testing different adhesives, and developing new products, handling the coating processes on labels, tapes, zippers, etc.
Specifications
| Model | JYT200 |
| Roller Width | 240mm |
| Max. Coating Width | 200mm |
| Max. Diameter of Substrate | 400mm |
| Paper Core Diameter | 76mm |
| Unwind Device | 2 sets |
| Rewind Device | 1 set |
| Coating Weight | 7g/m²-120g/m² |
| Coating Speed | 50-150m/min |
| Max. Power | 8kW |
| Length | 2200mm |
| Width | 980mm |
| Height | 1300mm |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Main Components
PLC control system
Winding mechanism
Winding mechanism
Gluing system
