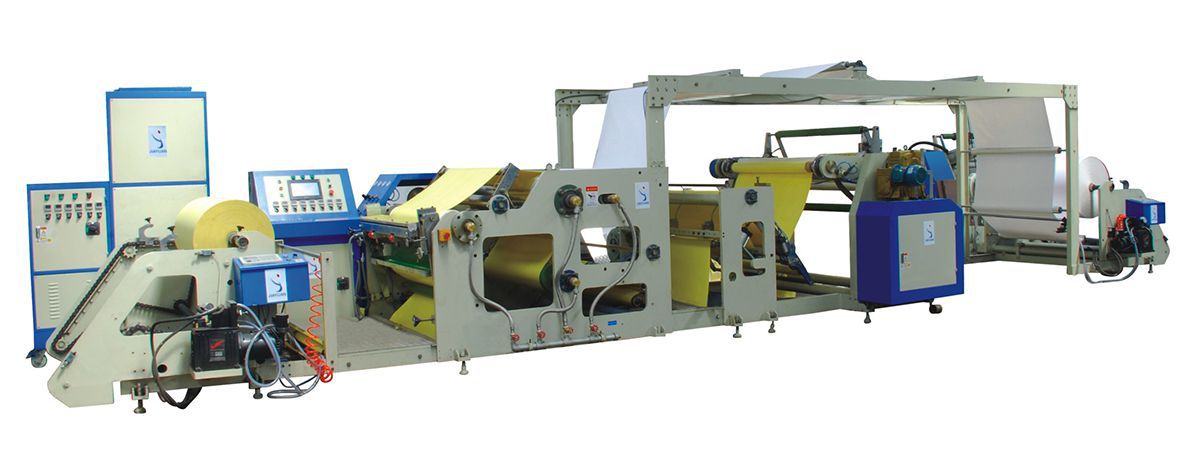

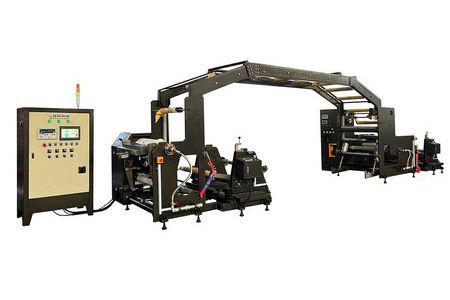

High Speed Hot Melt Adhesive Coating Machine, JYT-GB
Hot melt coating and laminating machine

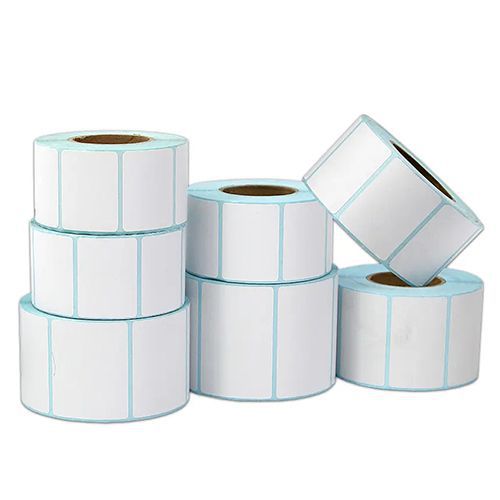

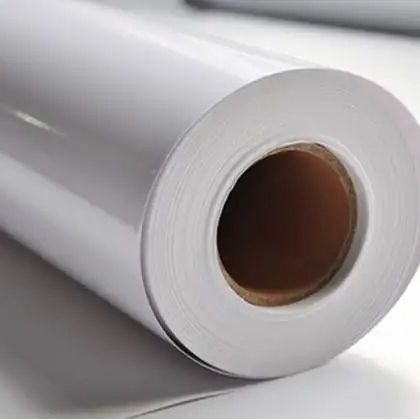

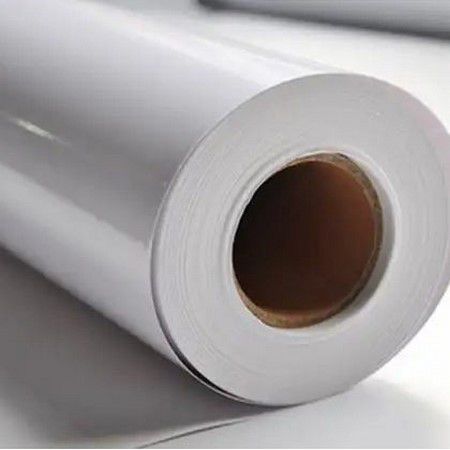

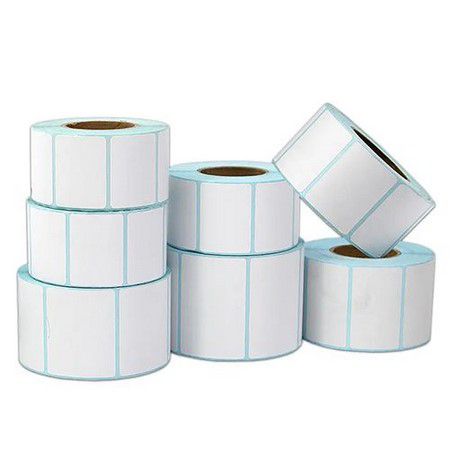

JYT-GB high speed hot melt adhesive coater, equipped with a PLC touchscreen automatic centralized control system, allows for single-person operation, which helps saving labor costs. An automatic constant tension control system ensures neat and flat material winding, while multi-layer filtration technology enhances the aesthetic effect of glue application. Ideal for producing self-adhesive label paper, various adhesive tapes, advertising photographic supplies, etc. Standard configuration includes slot-die coating set, while scratch-resistant coating set is available upon customer request.
Specifications
| Model | JYT-GB |
| Coating Width | 400-2000mm |
| Coating Weight | 10-200g/m² |
| Coating Speed | 200 m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 1000mm |
| Web Guide System | 2 sets |
| Length | 12000mm |
| Height | 2600mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Features
- PLC touchscreen automatic centralized control system, realizing single-person operation.
- Pneumatic feeding device ensures easy material connection and flat joining position, enabling non-stop operation.
- Neat and flat material winding is ensured with automatic constant tension control system complemented by center-surface rolling technique.
- Multi-layer filtration technology is employed in the filters, enhancing the aesthetic effect of adhesive application.
- High-precision, wear-resistant alloy steel applicator head ensures optimal coating effects during high-speed applicating.
- Standard configuration includes slot-die coating set, while scratch-resistant coating set is available upon customer request.
Main Components
PLC control system
Winding mechanism
Winding mechanism
Gluing system
