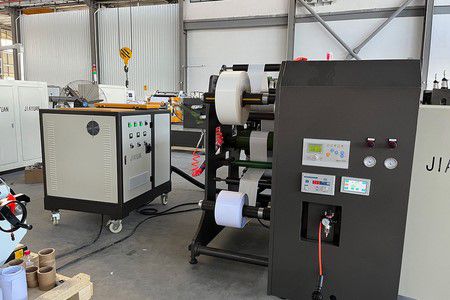

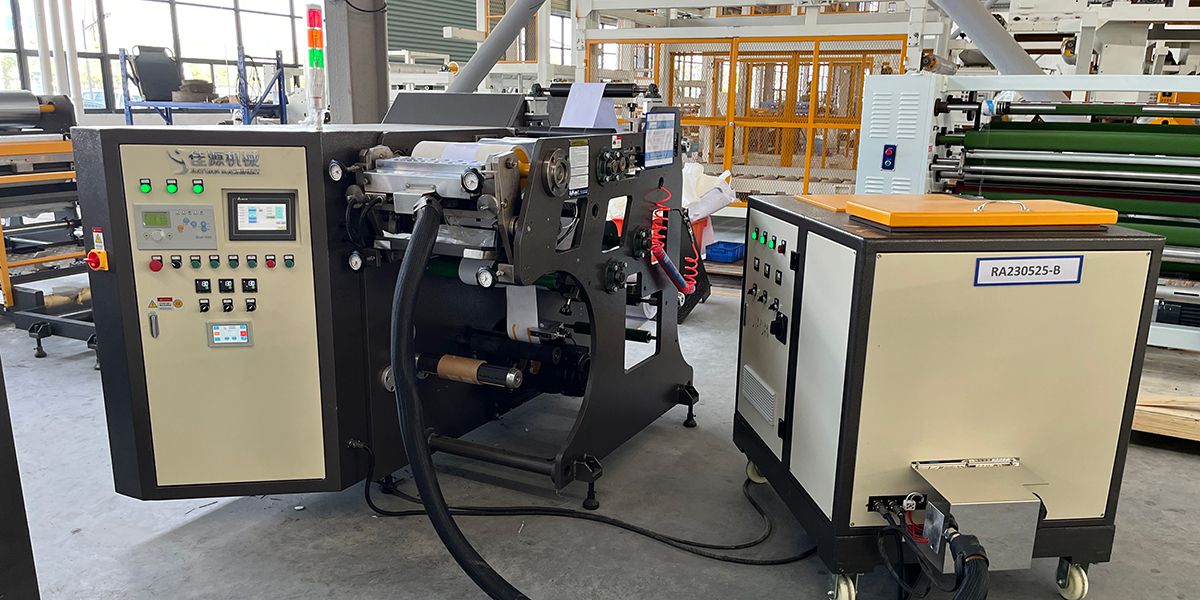

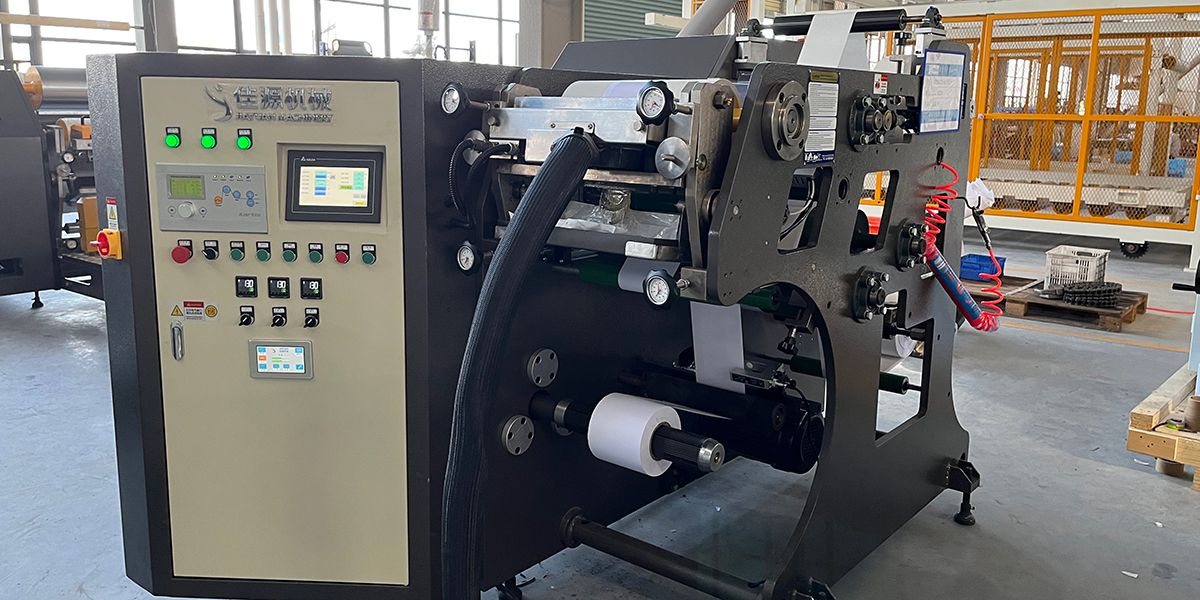

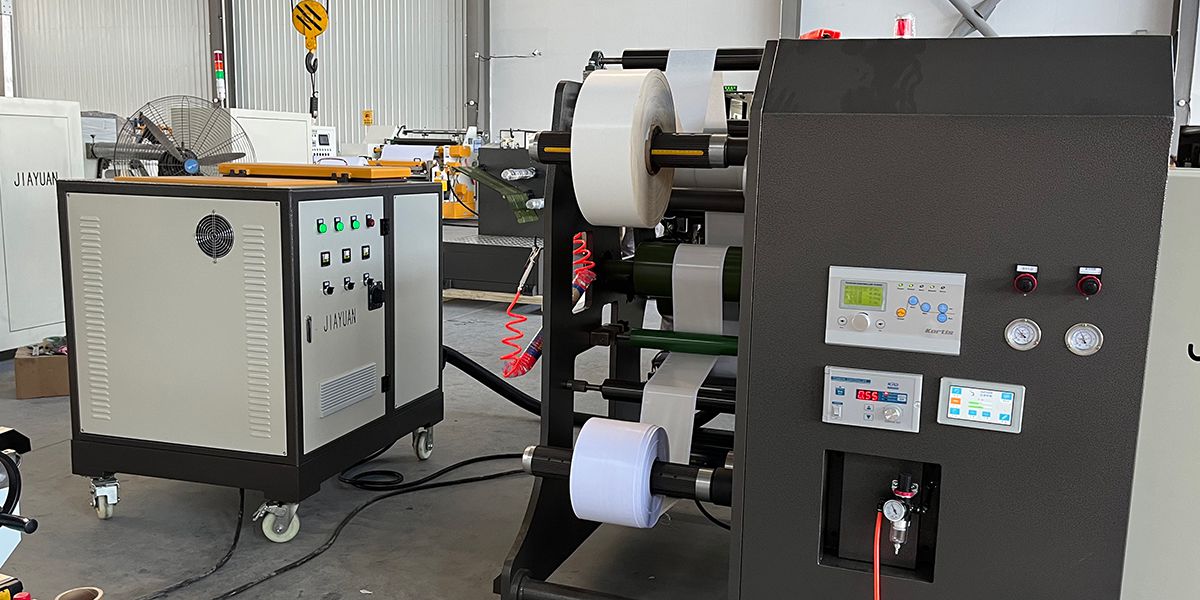

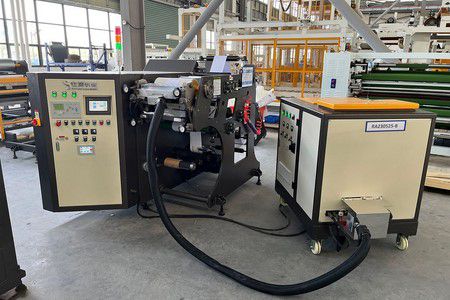

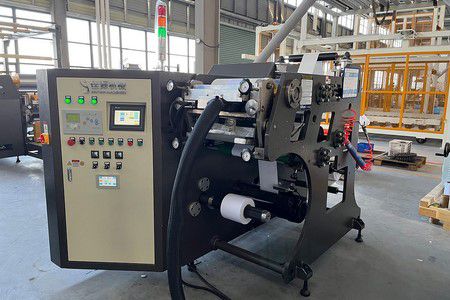

Self-Adhesive Label Coating Machine, JYT320
JYT320 self-adhesive label coater is suitable for coating processes on labels, tapes, zippers, etc. Ideal for research, small batch production, testing various types of adhesives, or developing new products due to its low cost and compact size.
Specifications
| Model | JYT320 |
| Roller Width | 370mm |
| Max. Coating Width | 320mm |
| Max. Diameter of Substrate | 400mm |
| Paper Core Diameter | 76mm |
| Unwind Device | 2 sets |
| Rewind Device | 1 set |
| Coating Weight | 7g/m²-120g/m² |
| Coating Speed | 50-150m/min |
| Max. Power | 9.5kW |
| Length | 2200mm |
| Width | 980mm |
| Height | 1300mm |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Main Components
PLC control system
Winding mechanism
Winding mechanism
Gluing system
