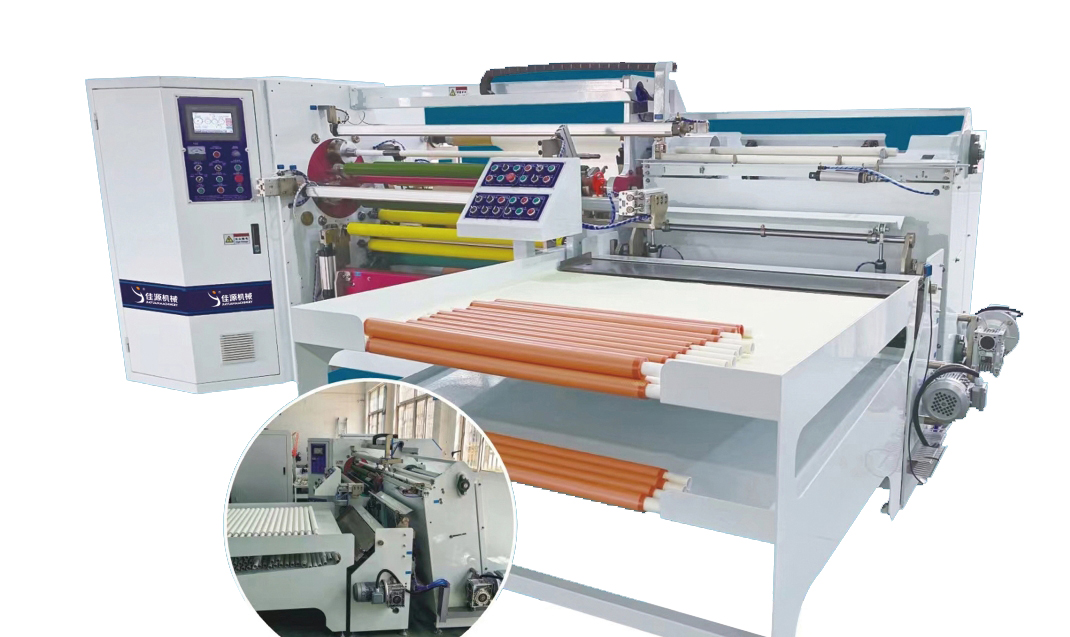

Three-Shaft Fully Automatic Rewinding Machine, JY-800A
Adhesive tape rewinding machine
This three-shaft rewinding machine is completely automated, specially designed for automotive and medical adhesive tapes engineered for high-speed and continuous production.
Key Features
- Automatic Core Loading & Unloading – Enhances productivity and minimizes downtime.
- Automated Labeling System – Streamlines traceability and packaging.
- Auto Cutting & Tape Flattening – Guarantees smooth edges and clean presentation.
- Hydraulic Material Feeding & Dual-Layer Peeling and Rewinding – Provides stable, efficient handling of complex materials.
Specifications
| Machine Width | 1.0m, 1.3m |
| Rewind Diameter | 960-1280mm |
| Max. Unwind Diameter | 800mm |
| Min. Rewind Diameter | Ø25.4×110mm/Ø38×110mm |
| Max. Rewinding Speed | 0-100M/min |
| Paper Core Inner Diameter | Ø25/38mm |
| Main Motor | 8kW(380V-50Hz) |
| Air Source | 6 bar |
| Machine Dimensions | 3900×3200×1600mm (machine width 1.3m) |
| Machine Weight | ±2000kg |
