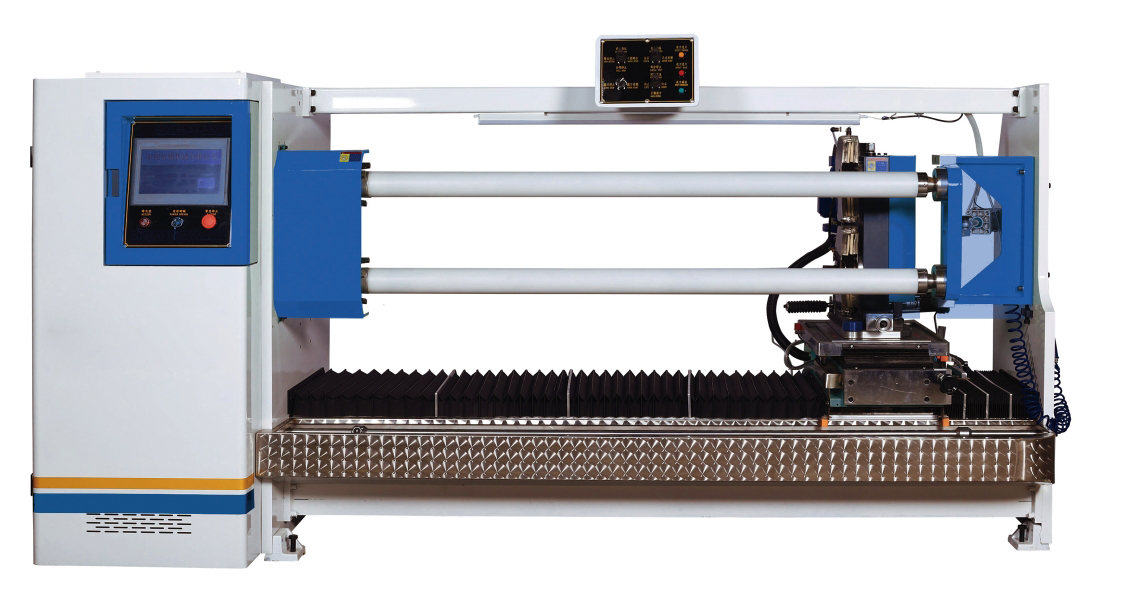

Dual-Shaft Automatic Log Slitter, JY-1300DC
Tape roll slitting machine
Features
- Smart Interface: The dual-shaft automatic log slitting machine operates in a highly automated and efficient system, equipped with a user-friendly touch-screen interface and controlled by durable PLC (Programmable Logic Controller) technology.
- Efficient Cutting: The slitting machine is equipped with dual-shaft synchronized cutting spindles that operate simultaneously, effectively doubling the slitting efficiency.
- Precision Circular Blade Slitting: The automatic slitting machine utilizes two sets of circular blades positioned on the upper and lower parts, delivering precise and smooth slitting results in a single pass.
- Versatile Industry Applications: Specifically designed for the electronics and adhesive tape industries. This slitting machine is compatible for materials such as, double-sided tapes, masking tapes, cloth-based tapes, polyester films, PE films, foam tapes, PVC electrical tapes, aluminum foil tapes, PET films, release papers, etc.
Specifications
| Effective Cutting Width | 1300mm |
| Paper Core Inner Diameter | 76.2mm |
| Main Drive Motor Power | 5HP |
| Machine Weight | ±1700kg |
| Max. Cutting Diameter | 180mm |
| Motor Power | 10HP |
| Dimensions (L×W×H) | 2900×1160×1530mm |
