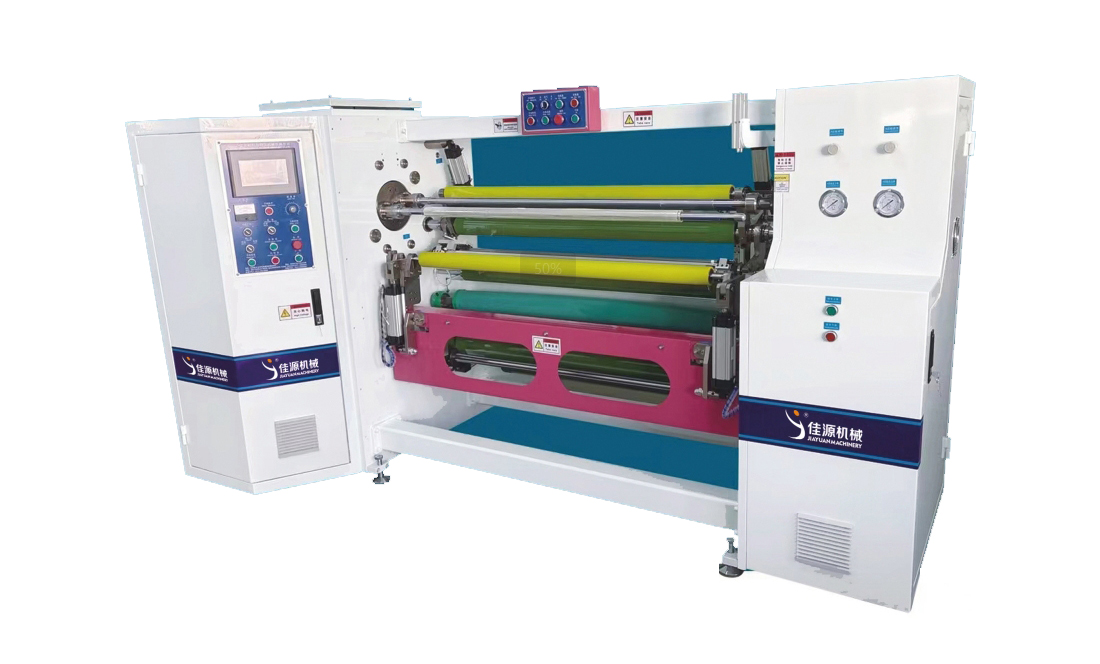

Dual-Shaft Rewinding Machine, JY-802L
Adhesive tape rewinding machine
Designed for high-performance rewinding of various adhesive tapes used in industrial, electronic, and packaging industries. The rewinding machine combines automation with precision to streamline production, ensuring consistent results.
Key Features:
- Automatic Labeling – Ensures accurate and efficient label placement.
- Auto Cutting & Smoothing – Delivers clean cuts and smooth tape finishes with minimal human intervention.
- Dual-Layer Peeling and Rewinding – Supports complex materials with layered construction for high-quality output.
Specifications
| Machine Width | 1.0m, 1.3m |
| Rewind Diameter | 960-1280mm |
| Max. Unwind Diameter | 800mm |
| Min. Rewind Diameter | 130mm (distance between two shafts is 120mm) |
| Max. Rewinding Speed | 130m/min |
| Paper Core Inner Diameter | Ø32/38/42mm |
| Main Motor | 12kW/380V-50Hz (depending on country) |
| Air Source | 6 bar |
| Machine Dimensions | 2200×1250×1500mm (machine width 1.3m) |
| Machine Weight | ±1200kg |
