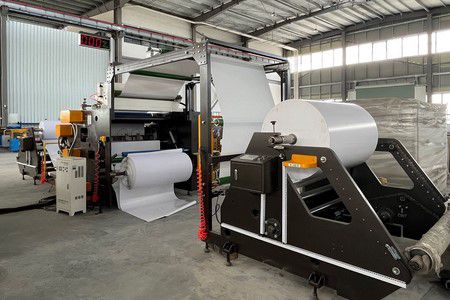

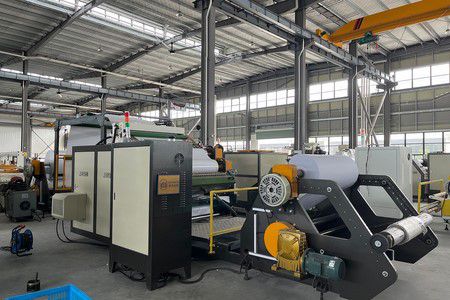

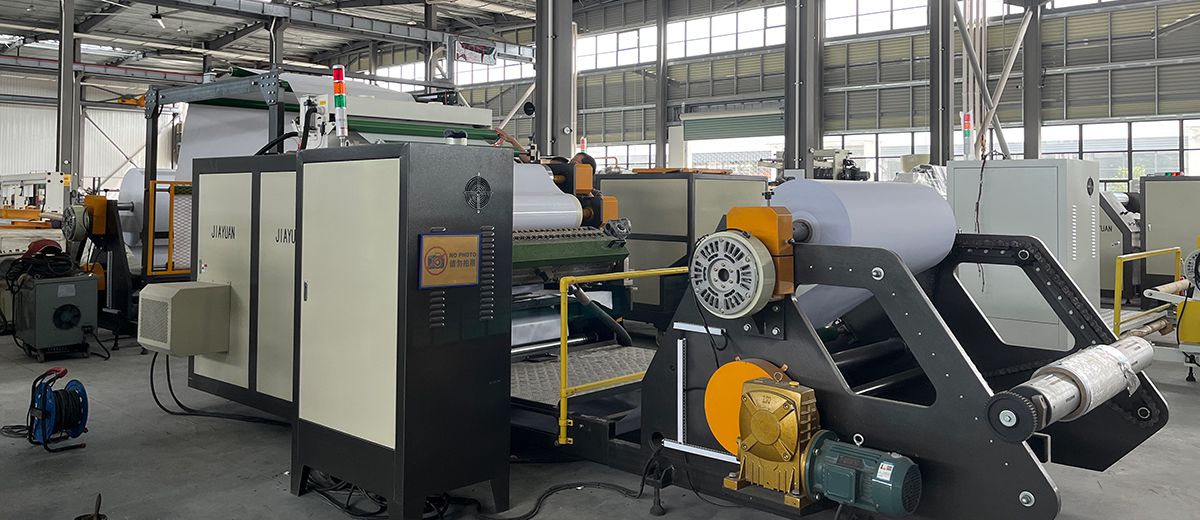

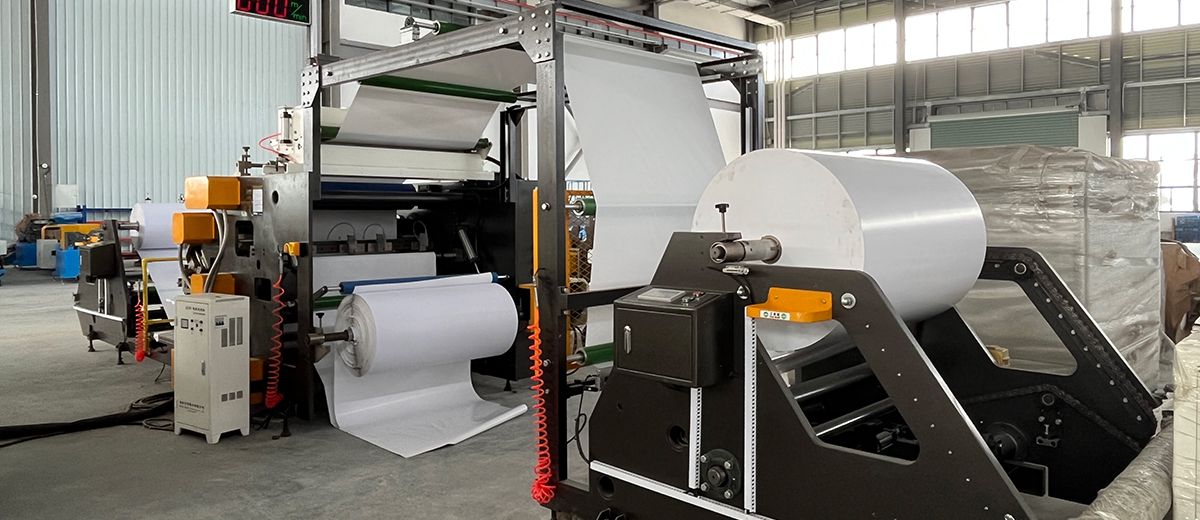

High Speed Scratch-Resistant Hot Melt Adhesive Coating Machine
Hot melt coating and laminating machine

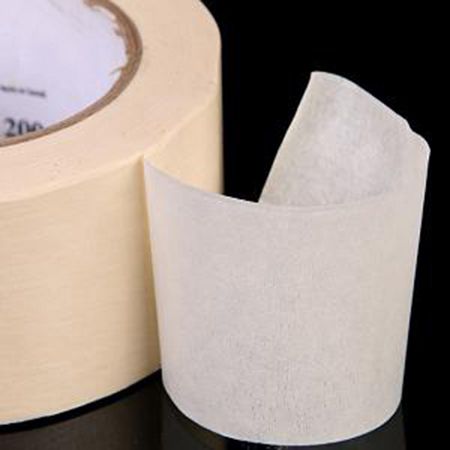

Our high-speed scratch-resistant hot melt adhesive coater employs a high-precision, wear-resistant alloy applicator head, ensuring optimal results during high-speed coating. With PLC touchscreen automatic centralized control system, single-person operation is achieved. Suitable for handling transparent label materials, self-adhesive label paper, adhesive tapes, advertising and photographic materials, etc.
Specifications
| Coating Width | 300-2000mm |
| Coating Weight | 10-200g/m² |
| Coating Speed | 50-150m/min |
| Unwind Diameter | 500mm |
| Rewind Diameter | 500mm |
| Web Guide System | 2sets |
| Length | 7000mm |
| Height | 1600mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Features
- PLC touchscreen automatic centralized control system, realizing single-person operation.
- Pneumatic feeding device ensures easy material connection and flat joining position, enabling non-stop operation.
- Neat and flat material winding is ensured with automatic constant tension control system complemented by center-surface rolling technique.
- Multi-layer filtration technology is employed in the filters, enhancing the aesthetic effect of adhesive application.
- High-precision, wear-resistant alloy steel applicator head ensures optimal coating results during high-speed applicating.
Main Components
PLC control system
Winding mechanism
Winding mechanism
Gluing system
