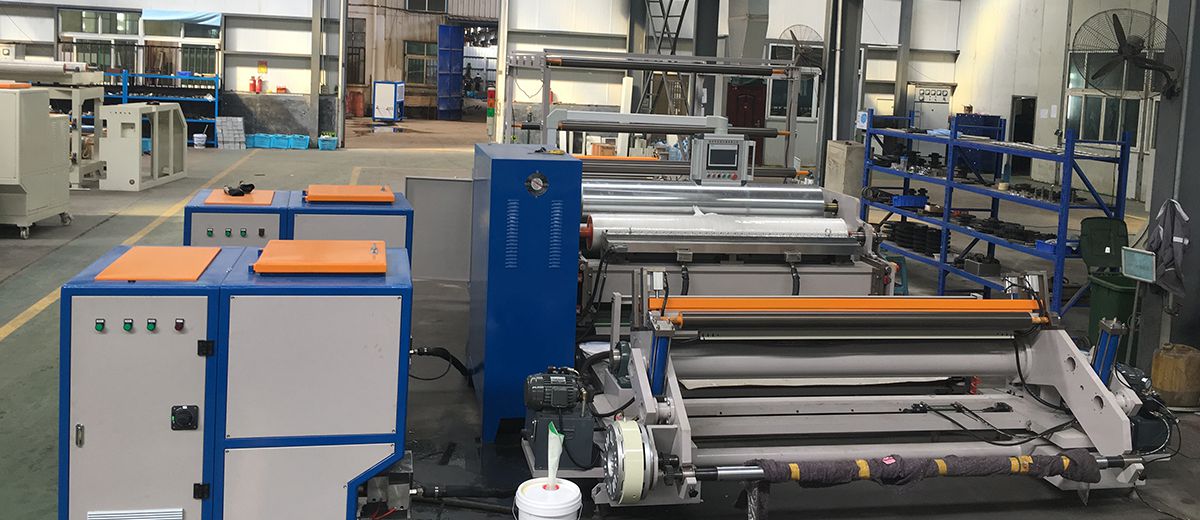

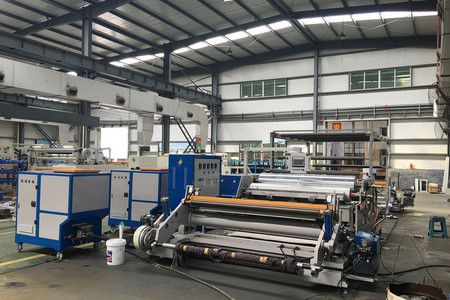

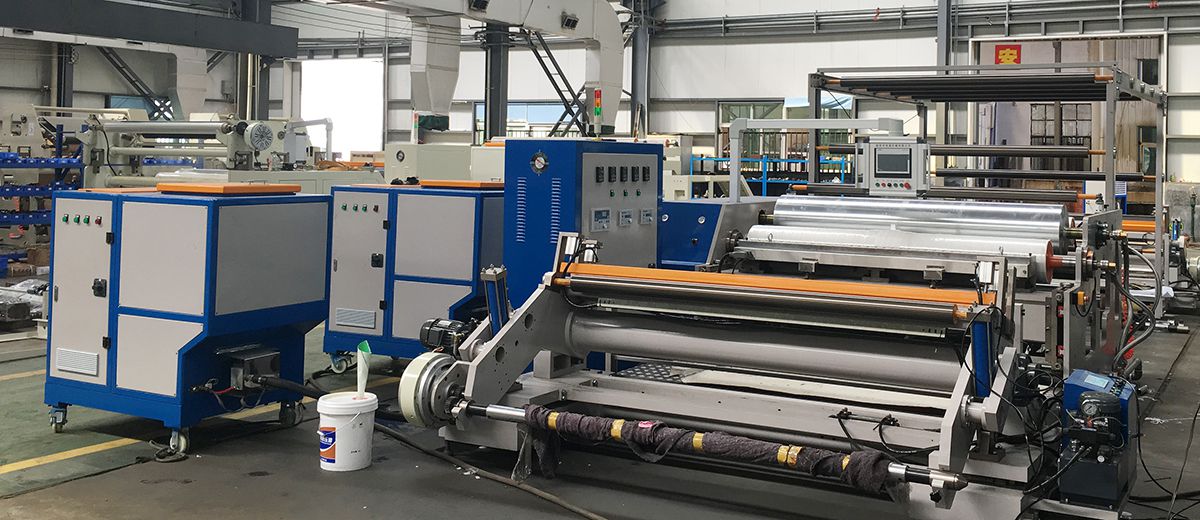

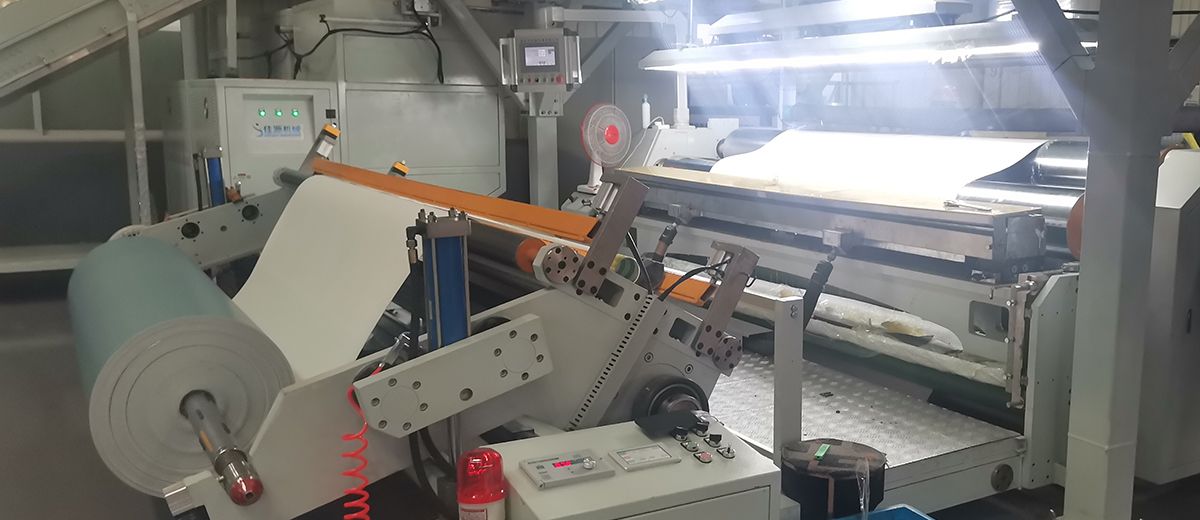

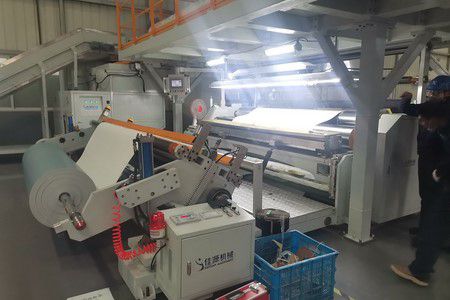

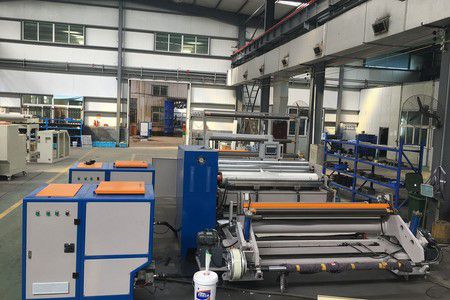

Automotive Floor Mat Coating Machine
Automotive floor mat coating machine is ideal for the production of polymer waterproof roll materials and adhesive coating on automotive PVC floor leather, etc.
The unwind stands are equipped with electric lifting function for material lowering, labor-saving.
Specifications
| Coating Width | 1000-3000mm |
| Coating Weight | 50-500g/m² |
| Coating Speed | 1-50m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 700mm |
| Web Guide System | 2 sets |
| Length | 12000mm |
| Height | 5000mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Features
- Both first and second unwind stands on independent frames, featuring automatic web guiding to ensure more ideal coating quality.
- The unwind stands are equipped with electric lifting function for material lowering.
- All functionalities of JYT-B hot melt adhesive coater.
Main Components
PLC control system
Winding mechanism
Winding mechanism
Gluing system
